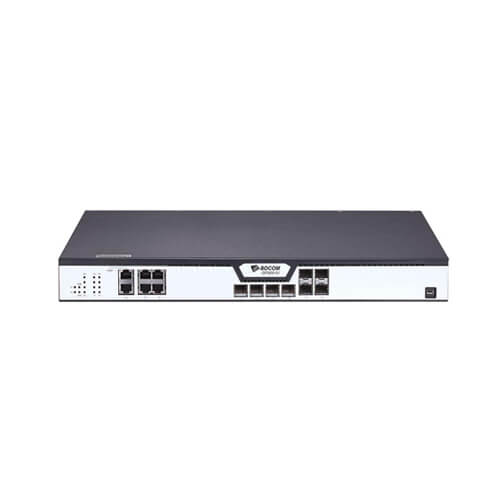

BDCOM GP3600-04 4-Port GPON OLT

BDCOM GP3600-04 4-Port GPON OLT:

GPON OLT with 4 PON ports (1 console port, 1 out-band 10/100M port, 4 fixed PON ports (excluding the OLT SFP module), 4 GE TX ports, 4 10GE SFP+ ports; 2 power slots with 1 hot-swap AC220V power supply; 19-inch rack-mounted installation)

Service interface: PON Ports: 4, GE uplink: 4 GE TX, 10GE Uplink: 4 10GE/GE SFP+, Supported GPON SFP module

Standards:
· ITU-T G.984/G.988
· IEEE 802.11D, Spanning Tree
· IEEE 802.1Q, VLAN
· IEEE 802.1w, RSTP
· IEEE 802.3ad physical link
static/dynamic aggregation
(LACP), Ethernet – II

VLAN:
· Port/IP/Protocol/MAC-based
VLAN
· 4K VLAN
· QinQ and flexible QinQ

Multicast:
· L2 multicast
· IGMP snooping
· MLD snooping
· Fast-leave

Layer 3 Function:
· Static route
· RIPv1/v2
· OSPF
· BGP

QoS:
· Backpressure flow control (half-duplex)
· IEEE 802.3x flow control (full-duplex)
· IEEE 802.1p, CoS
· WRR, SP, and FIFO queue schedule
· Limiting the uplink/downlink rate based on each ONU
· DBA and SLA

Reliability:
· Unidirectional Link Detection (UDLD)
· Hot swap of the GPON optical module
· Optical path protection of GPON (type B/C, hand-in-hand)
· Abnormal luminescence ONU detection such as long luminescence
· IEEE 802.3ad LACP

DHCP Function:
· Server/Relay/Client
· DHCP snooping
· DHCP option 66,67,82
· DAI
· IP source guard

Network Security:
· L2~4 ACL
· Flow-based ACL
· MAC limitation
· MAC sticky
· Port isolation
· Packet storm control
· Transmission data encryption on the PON interface
· Anti attack for DDOS, TCP-SYN-flood, UDP-flood, ARP-flood, etc.

Management:
· Various management modes such as CLI, Telnet, SSH, HTTP, SSL, and SNMP
· ISSUE
· FTP/TFTP
· SPAN/SPAIN
· NTP

Network Availability:
· STP/RSTP/MSTP
· BPDU guard
· MAPS

What is the price of the BDCOM GP3600-04 4-Port GPON OLT in Bangladesh?

The latest price of the BDCOM GP3600-04 4-Port GPON OLT in Bangladesh is 89,000৳. You can buy the BDCOM GP3600-04 4-Port GPON OLT at the best price from our website or visit our showroom. Stay connected with our Facebook Pages.
