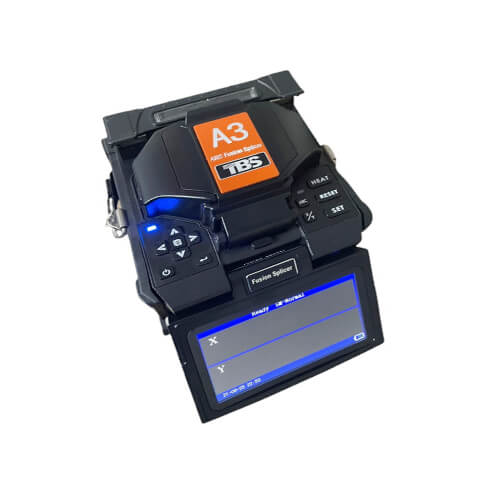

SHINHO A3 Splicer Machine:
- seconds splicing time, 26s heating time.
- Handheld, small, and light;1.9kg weight.
- A rechargeable 5200mAh battery could support 250 cycles of splicing and heating.
- Switchable SOC (Splice On Connector)
- Automatic arc calibration.
- Enhanced Durability with Ceramic Clamp
- Rubber bumper for better protection.
- Two-year Replacement warranty.
|
Diameter of cladding
|
80 -150μm
|
|
Diameter of coating
|
160-900μm
|
|
Typical splice loss
|
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
|
|
Return loss
|
> 60dB
|
|
Fiber cleaved length
|
5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
|
|
Splicing program
|
40 groups
|
|
Operate mode
|
Automatic/Manual
|
|
Auto-heating
|
Available
|
|
Typical splicing time
|
7 seconds
|
|
Typical heating time
|
26 seconds
|
|
Fiber magnification
|
250X (X or Y view), 125X (X and Y view)
|
|
Display screen
|
4.3-inch color LCD monitor
|
|
Records Storage
|
4000 results
|
|
Loss evaluation
|
Available
|
|
Tension test
|
1.8-2.2N
|
|
Interface
|
GUI menu interface, easy to operation
|
|
Battery
|
5200mAh Li-battery, typical 250 cycles of splicing and heating
|
|
Power supply
|
Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
|
|
Electrodes life
|
More than 4000 ARC discharges, can be replaced conveniently
|
|
Terminal
|
USB2.0 port, for software upgrading and records, exporting
|
|
Operating conditions
|
Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC, Wind speed: Max 15m/s
|
|
Dimension
|
149mm(L) * 120mm(W) * 127mm(H)
|
|
Weight
|
1.90kg (including battery)
|
What is the price of the SHINHO A3 Splicer Machine in Bangladesh?
The latest price of the SHINHO A3 Splicer Machine in Bangladesh is 85,500৳. You can buy the SHINHO Splicer Machine at the best price from our website or visit our showroom. Stay connected with our Facebook Pages.
